Item |
Parameter |
|

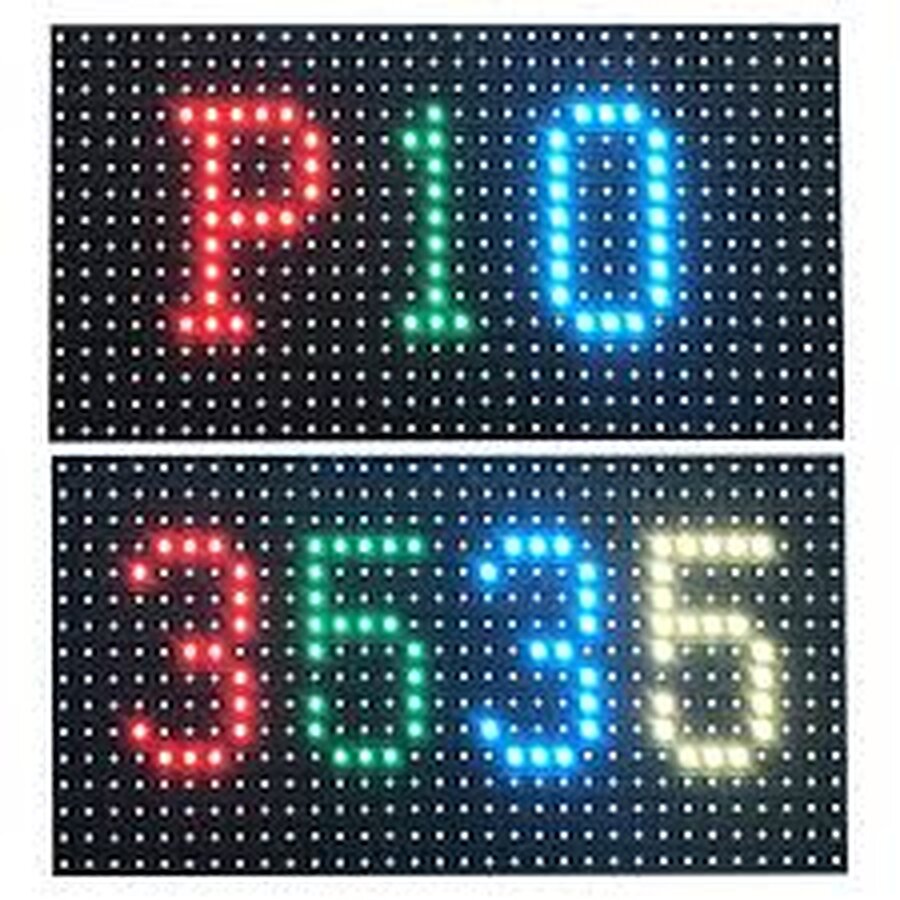

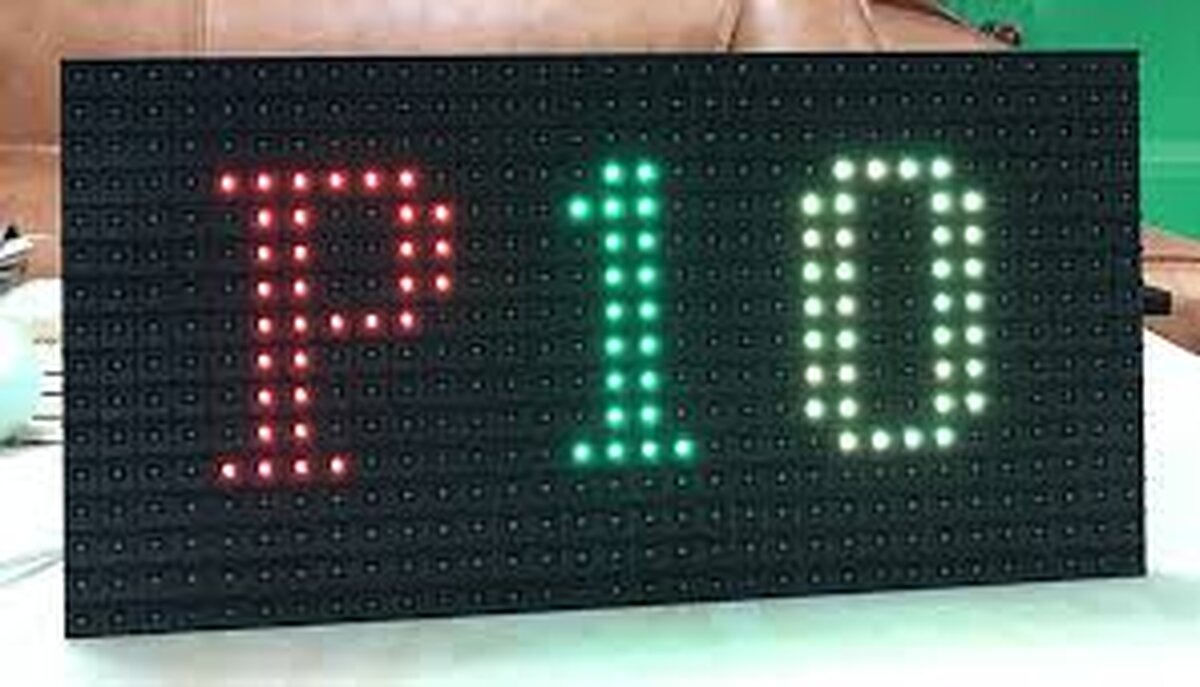

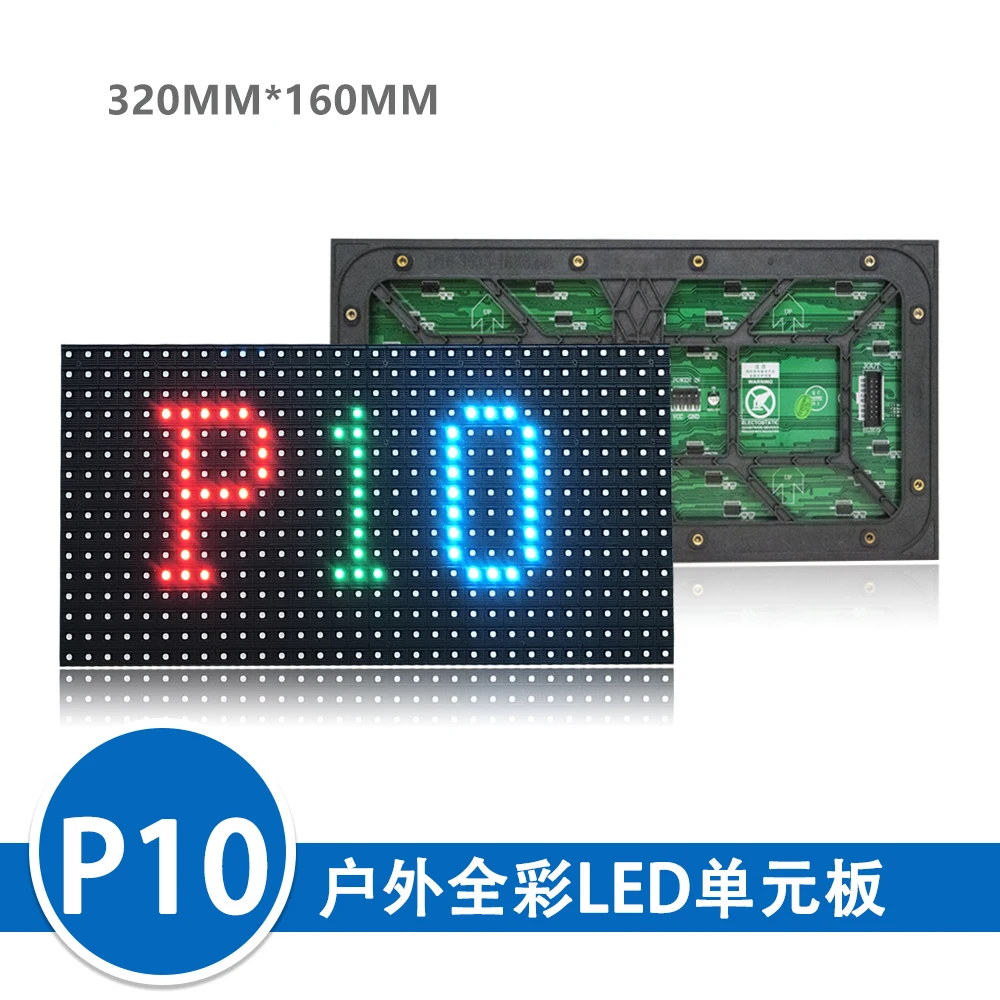

Model Number |
P10 |
|
|

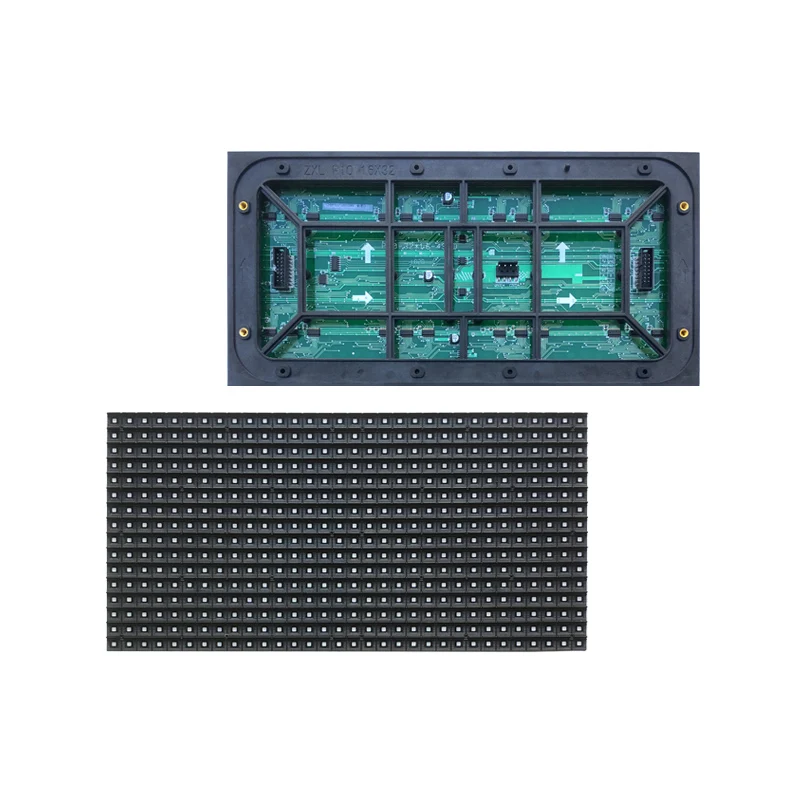

Module size |
320mm*160mm |
|
|
Pixel pitch |
10mm |
|
|
Pixels Density |
10000 dots/m2 |
|
|

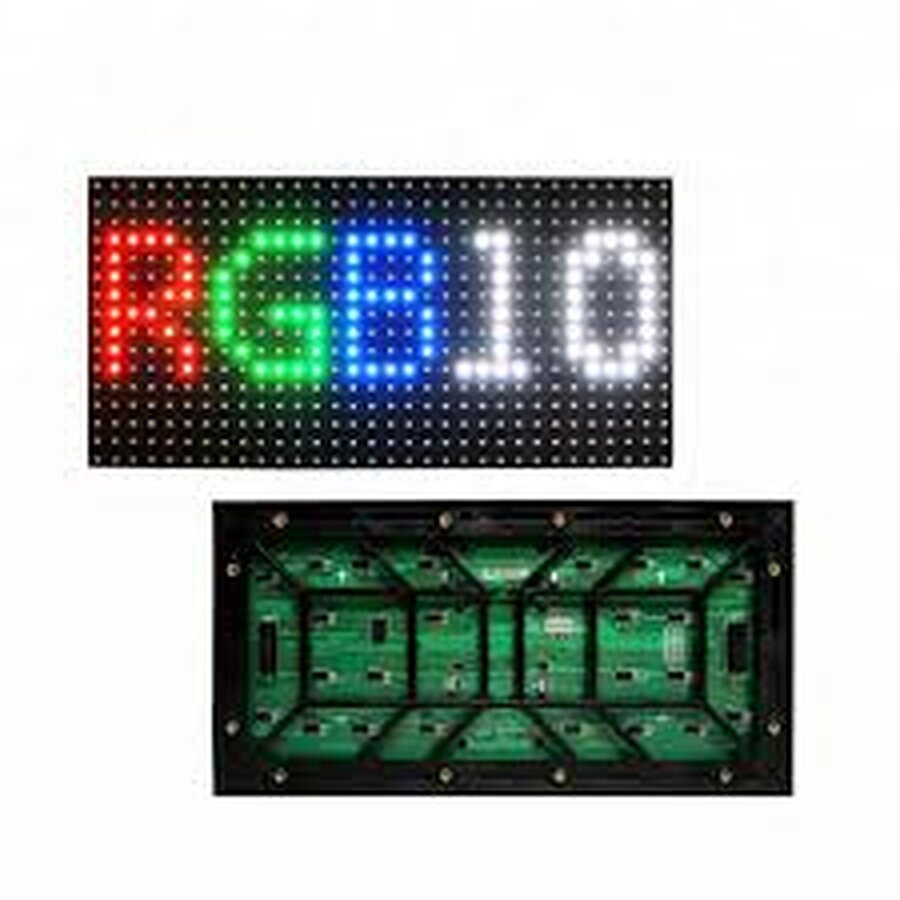

Pixel configuration |
1R1G1B |
|
|
Package mode |
SMD3535 |
|
|
Pixel resolution |
32dots(W)*16 dots(H) |
|
|
Max Power |
45W |
|
|
Module thickness |
17.05mm |
|
|
Weight |
0.51kg |
|
|
Drive type |
Constant drive |
|
|
Scan mode |
1/4 scran |
|
|

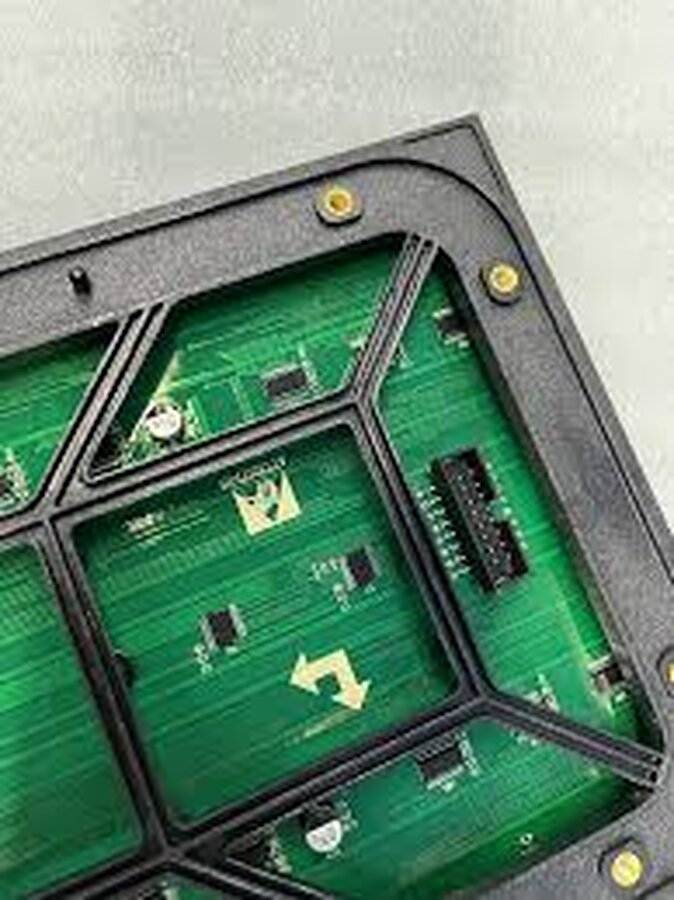

Port type |
HUB75 |
|
|
Brightness of white balance |
≥7500cd/m2 |
|
|
LED cabinet |
Dimension |
640mm*640mm |
|
Monomer Module Number |
8pcs |
|
|
Power supply |
5V/40A*2 pcs |
|
|
Thermal dischargeThermal discharge |
fan 1pcs |
|
|
Pixel per cabinet |
64mm*64mm |
|
|
Best viewing distance |
10M～50M |
|
|
Best viewing angle |
160°(W) 120°(H) |
|
|
Temperature |
storage:-35℃～+85℃ |
|
|
working:-20℃～+50℃ |
||
|
Relative humidity |
10%-95% |
|
|
Thickness |
85mm |
|
|
Power |
Working voltage |
AC220V±10% |
|
Average Power consumption |
<350W/㎡ |
|
|
Max.Power consumption |
<880W/㎡ |
|
|
Current |
<20mA(single LED) |
|
|
Control system |
CPU |
Pentium4 or above P4 or above |
|
Operation system |
XP/WIN7/WIN10 |
|
|
Control method |
Synchronization |
|
|
Main technical parameter |
Driving device |
Constant drive IC |
|
Refresh frequency |
>2000HZ |
|
|
Grey scale/colors |
16384 grade,can display 16.7M colors |
|
|
16384gray level/16.7M colors |
||
|
MTBF |
>9000hours |
|
|
Power switch |
Automatic switch |
|
|
Display Mode |
≥800*600/1024*768
|
