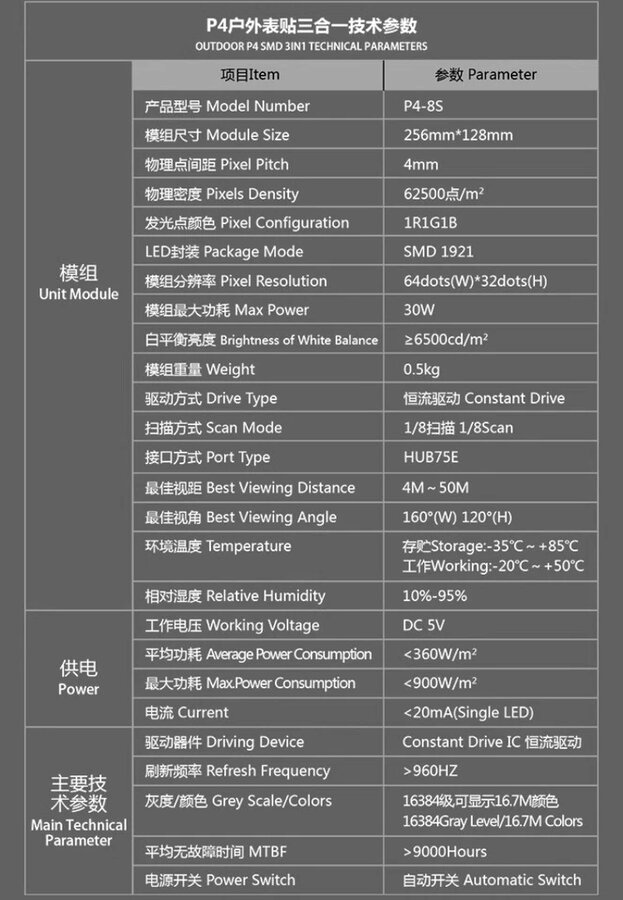

Specification
Application environment: indoor
Physical point spacing: 4mm

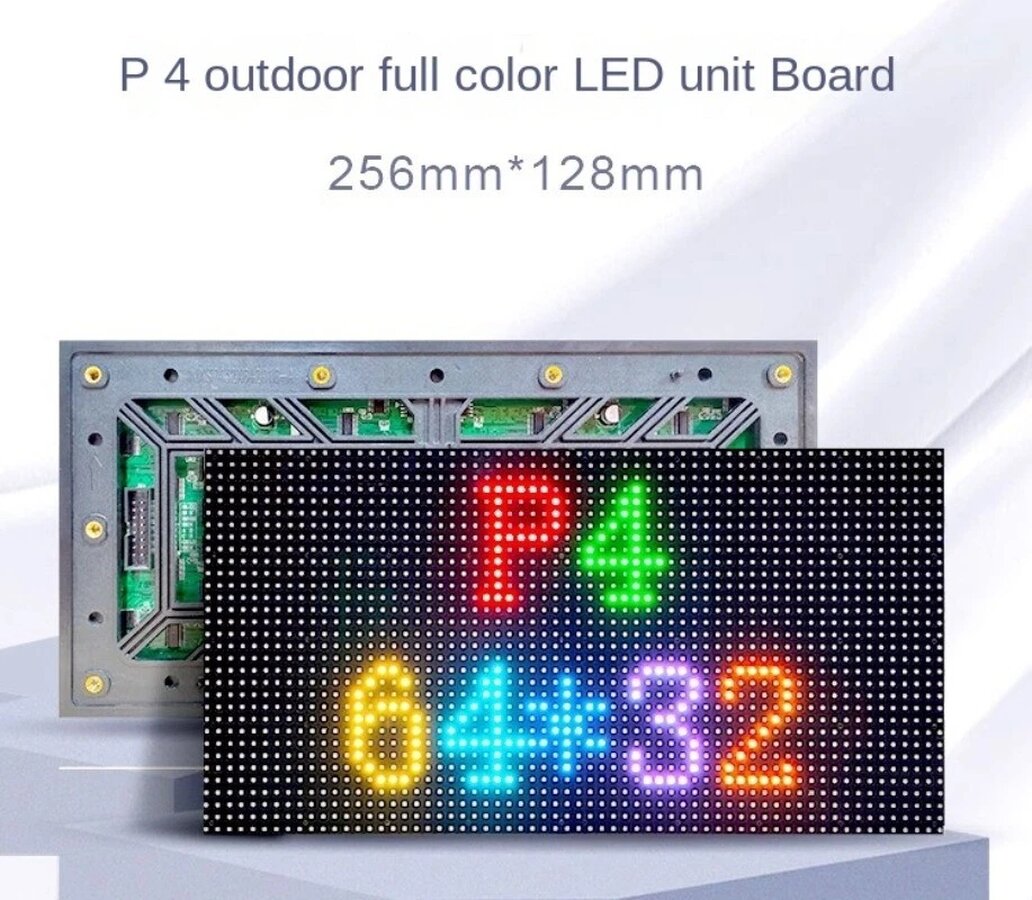

Unit board size: 256X128 (mm)

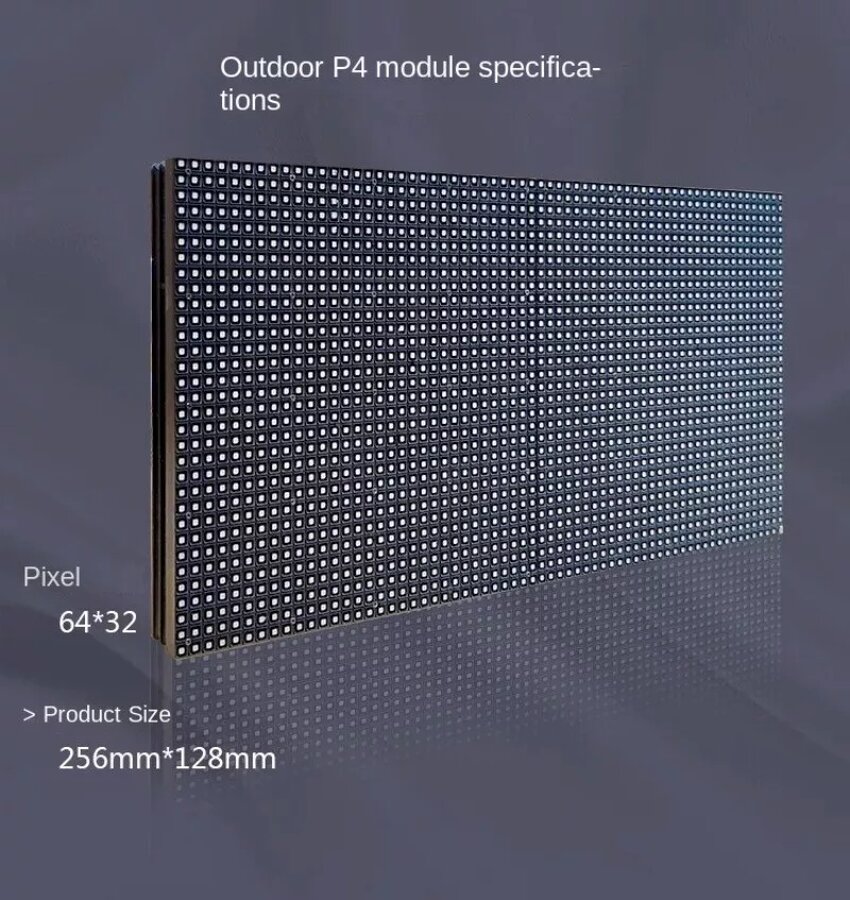

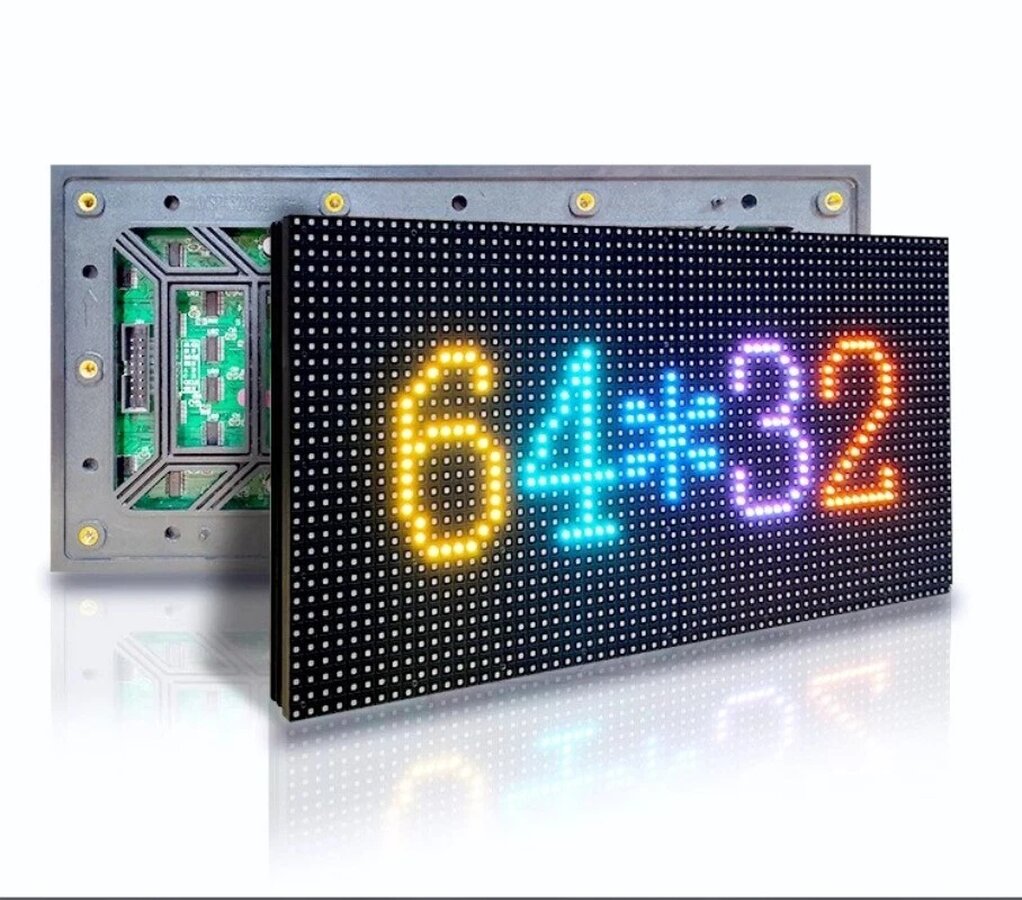

Resolution: 64 * 32=2048Dots
Visual angle horizontal: ≥ 160 (+10/-10) degrees
Control method: synchronous control
Mean time between failures: ≥ 5000 hours
Drive mode: Sixteen sweeps (constant current)
Service life: 75000~100000 hours
LED packaging method: SMD 2121 LED dedicated (RGB zigzag arrangement)
Red LED wavelength: 618-623nm (band error: ± 2.5n)
Red LED brightness: 200-230mcd
Green LED wavelength: 525-527.5nm (band error: ± 2.5n)
Green LED brightness: 460-530mcd
Blue LED wavelength: 470-472.5nm (band error: ± 2.5n)
Blue LED brightness: 125-145mcd
Brightness: ≥ 1500CD/㎡
Pixel spacing: 4mm
Pixel density: 62500Dots/㎡
Pixel composition: 1R1PG1PB
Unit board size (length * width * thickness): 256.0mm * 128.0mm * 13.26mm
Structural feature: integrated light drive
Input voltage (DC): 4.8-5.5V
Maximum current: 4.7A
Maximum power of unit board: 23.5W
Usage environment: indoor
Working temperature range: -20 to 50 ℃



List
1 x Module
1 x Power cord
1 x Flat cable
4 x Screw
